LLM Gateway

The Onyx LLM Gateway gives applications one endpoint for the language models your organization has configured in Onyx. Requests use your Onyx identity, so model access and usage attribution stay in one place. Use the gateway when you want an application, automation, or coding tool to use organization-approved models without storing a separate provider key.

An administrator can turn the gateway off for the whole workspace with the Enable LLM Gateway switch in Admin Panel > LLM Gateway. While it is off, every gateway request is rejected and the gateway scope is hidden from the token picker.

What the gateway provides

An OpenAI-compatible Chat Completions endpoint.
An OpenAI Responses endpoint.
An Anthropic Messages endpoint and token-count endpoint.
A GET /models endpoint that lists the models your Onyx identity can access.

Onyx Craft sandboxes use the same gateway. Their coding agents call your configured providers through it, so Craft usage shows up with the same attribution and limits. The gateway does not replace your model-provider configuration. An administrator still configures providers and decides which models are visible in Admin Panel > Language Models.

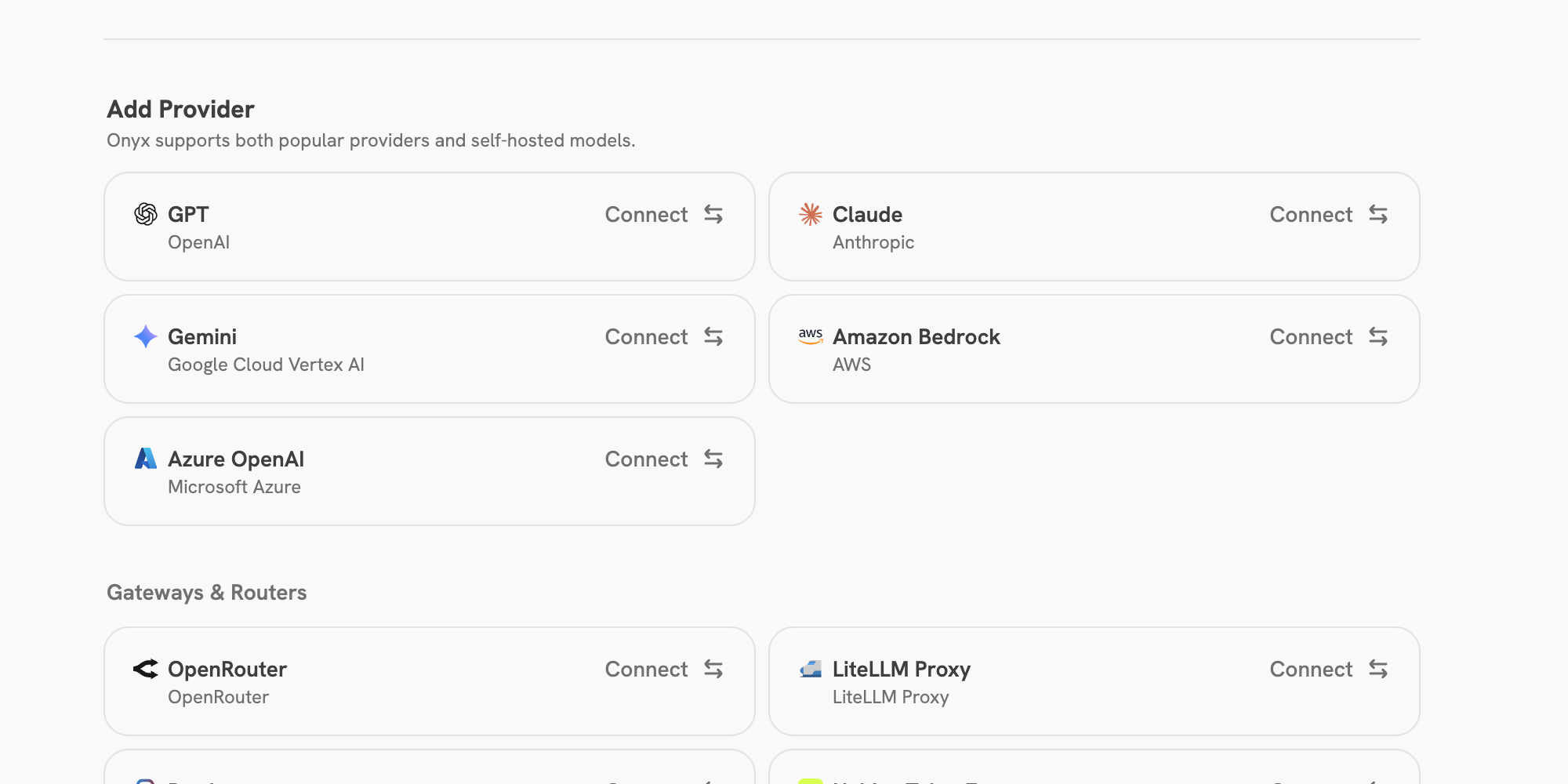

Onyx Admin Panel showing available language-model providers

Before you begin

You need all of the following:

Your workspace is on the Business or Enterprise plan, or on Onyx Cloud.
An Onyx administrator has configured a language model and made it visible.
Your Onyx account has access to that model.
A Personal Access Token (PAT) with the LLM Gateway — Use scope.

Create a Personal Access Token from Settings > Accounts & Access

New Access Token, or click New token in Settings > LLM Gateway. Under Permissions, choose Limited access and select LLM Gateway — Use. Onyx shows the token only once.

A full-access token does not work with the gateway. The gateway accepts only tokens with an explicit scope, and it rejects API keys and browser sessions.

Gateway address

Settings > LLM Gateway shows the Gateway URL for your deployment. For a standard Onyx deployment, it is:

https://your-onyx-domain.com/api/gateway/v1

Self-hosted deployments can expose the API at a different public path. Use the public API address for your deployment, followed by /gateway/v1. Every request uses a Bearer token:

export ONYX_GATEWAY_URL="https://your-onyx-domain.com/api/gateway/v1"
export ONYX_GATEWAY_API_KEY="onyx_pat_..."

Find an available model

The easiest way to find a model ID is in the Models section of Settings > LLM Gateway. The tab appears only when your plan includes the gateway and at least one model is visible and accessible to your account. The copied value already has the required format:

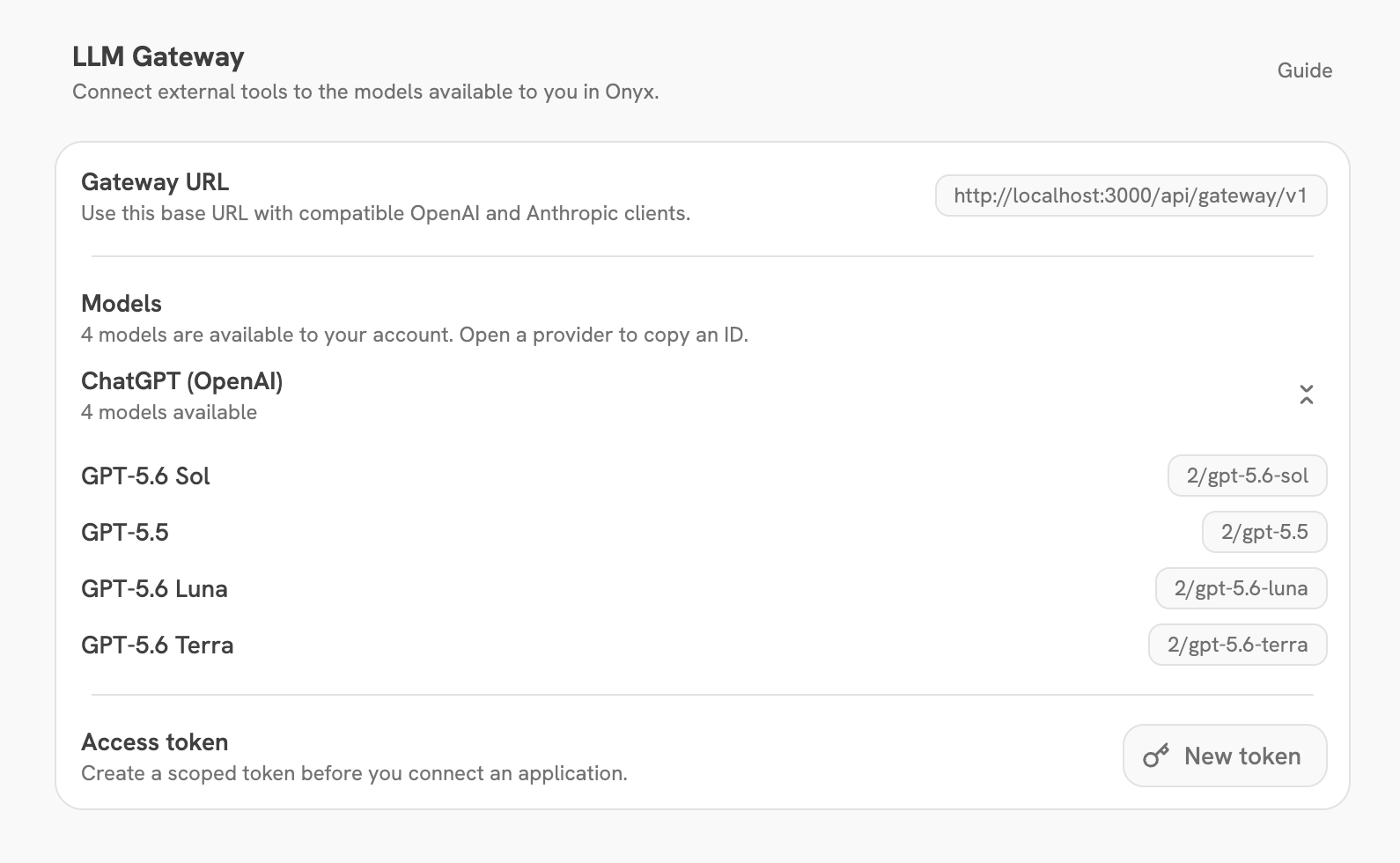

Onyx LLM Gateway settings with an expanded provider and model IDs

<provider-id>/<model-name>

For example, 12/gpt-5-mini means:

12 is the Onyx ID for the configured provider.
gpt-5-mini is the model name configured for that provider.

Use the copied value exactly as the model value in your client. Do not replace the provider ID with the provider name. Only models that are visible and marked for chat appear. There is no fallback to a default model: an unknown ID returns 404. You can also list the same IDs from your application:

curl "$ONYX_GATEWAY_URL/models" \
  -H "Authorization: Bearer $ONYX_GATEWAY_API_KEY"

OpenAI Chat Completions

Point OpenAI-compatible clients at the gateway URL. This example uses the official OpenAI JavaScript SDK.

TypeScript

import OpenAI from "openai";

const client = new OpenAI({
  apiKey: process.env.ONYX_GATEWAY_API_KEY,
  baseURL: process.env.ONYX_GATEWAY_URL,
});

const completion = await client.chat.completions.create({
  model: "12/gpt-5-mini",
  messages: [{ role: "user", content: "Write a one-line release note." }],
});

console.log(completion.choices[0].message.content);

The same request with stream: true uses server-sent events.

OpenAI Responses

The gateway also supports the OpenAI Responses API. Use the same base URL and model ID.

TypeScript

const response = await client.responses.create({
  model: "12/gpt-5-mini",
  input: "Summarize the purpose of this service in one sentence.",
});

console.log(response.output_text);

Gateway responses are stateless. Send the context that a later turn needs; do not rely on a previous response ID being stored by Onyx.

Anthropic Messages

For Anthropic-compatible clients, send requests to the gateway’s messages endpoint with the same Bearer token and model ID.

curl "$ONYX_GATEWAY_URL/messages" \
  -H "Authorization: Bearer $ONYX_GATEWAY_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "18/claude-haiku-4-5",
    "max_tokens": 256,
    "messages": [
      {"role": "user", "content": "Reply with one friendly greeting."}
    ]
  }'

To estimate the input tokens for an Anthropic Messages request, send the same request shape to POST /messages/count_tokens.

Use with coding agents

Use the gateway with Claude Code or Codex to give coding-agent requests the same model access controls, usage attribution, and token limits as other gateway traffic.

Claude Code

Set the gateway’s parent endpoint as the Anthropic base URL, then use a Claude model ID from Settings > LLM Gateway:

export ANTHROPIC_BASE_URL="https://your-onyx-domain.com/api/gateway"
export ANTHROPIC_AUTH_TOKEN="$ONYX_GATEWAY_API_KEY"
export ANTHROPIC_MODEL="18/claude-haiku-4-5"
export ANTHROPIC_SMALL_FAST_MODEL="18/claude-haiku-4-5"

claude

Claude Code appends /v1/messages, which resolves to the gateway’s Anthropic Messages endpoint. Use a model ID from your own Settings page. Provider IDs differ by deployment.

Codex

Create a Codex profile at ~/.codex/onyx.config.toml:

model = "12/gpt-5-mini"
model_provider = "onyx_gateway"

[model_providers.onyx_gateway]
name = "Onyx Gateway"
base_url = "https://your-onyx-domain.com/api/gateway/v1"
wire_api = "responses"
env_key = "ONYX_GATEWAY_API_KEY"

Then export the PAT and start Codex with that profile:

export ONYX_GATEWAY_API_KEY="onyx_pat_..."
codex -p onyx

The configured model must be an OpenAI-compatible model ID from Settings > LLM Gateway.

OpenCode

Add the gateway as an OpenAI-compatible provider in your project’s opencode.json:

{
  "$schema": "https://opencode.ai/config.json",
  "model": "onyx_gateway/12/gpt-5-mini",
  "provider": {
    "onyx_gateway": {
      "npm": "@ai-sdk/openai-compatible",
      "name": "Onyx Gateway",
      "options": {
        "baseURL": "https://your-onyx-domain.com/api/gateway/v1",
        "apiKey": "{env:ONYX_GATEWAY_API_KEY}"
      },
      "models": {
        "12/gpt-5-mini": {
          "name": "GPT-5 mini via Onyx"
        }
      }
    }
  }
}

Export a PAT before starting OpenCode:

export ONYX_GATEWAY_API_KEY="onyx_pat_..."
opencode

The @ai-sdk/openai-compatible provider uses the gateway’s Chat Completions endpoint.

Usage and limits

Gateway requests use the calling user’s Onyx permissions. If the user loses access to a model, the gateway no longer exposes or accepts that model for the user. Administrators can review token use and estimated model cost in Admin Panel

Usage. The Manage spending limits section on the same page sets global, user, or group token limits. Those limits apply before the gateway sends a generation request to a model provider. The token-count endpoint does not generate anything, so it is not metered and not limited.

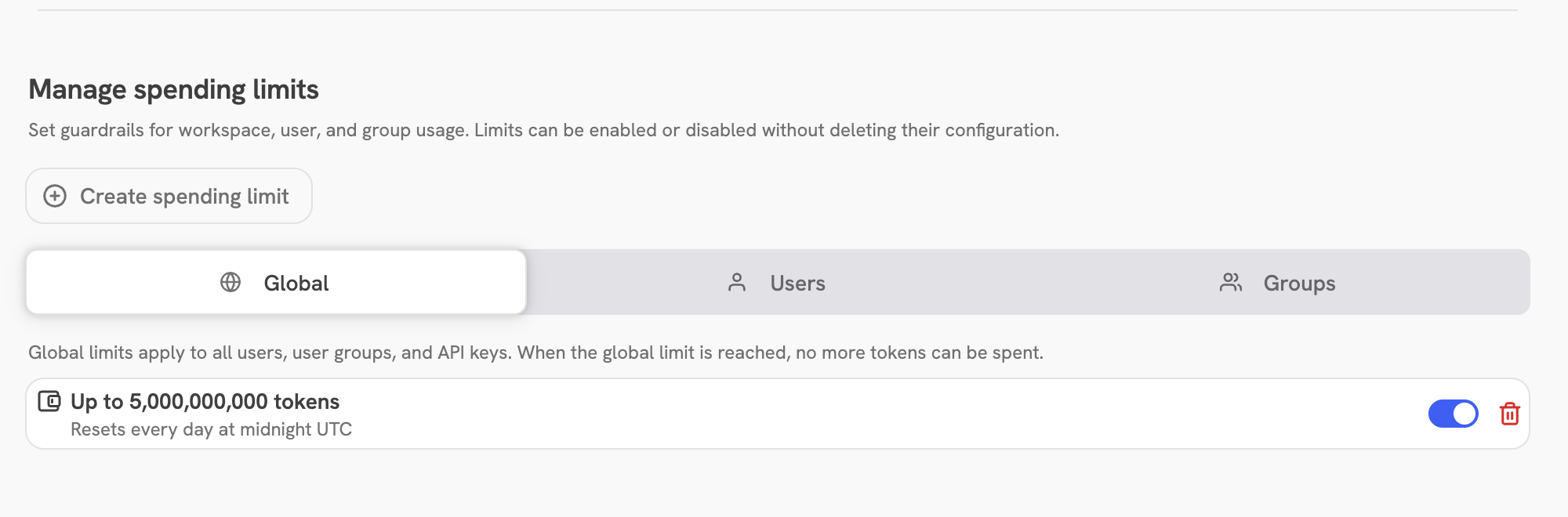

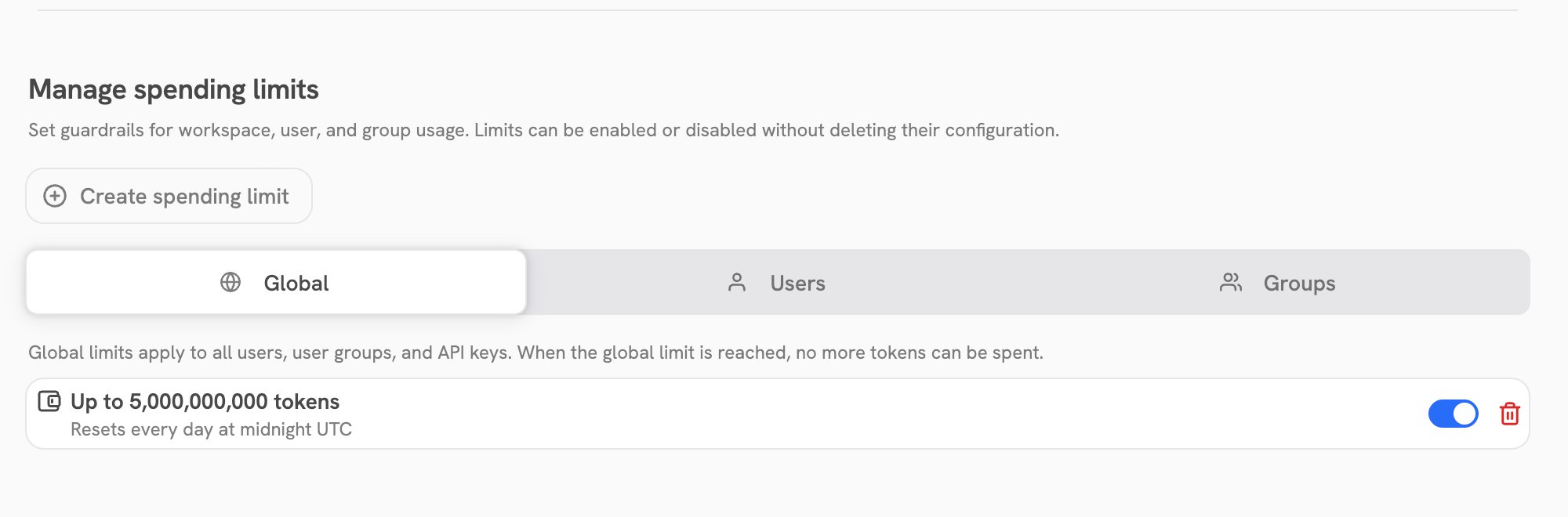

Onyx Admin Panel controls for global, user, and group spending limits

Native passthrough

Anthropic Messages requests that resolve to an Anthropic provider, and Responses requests that resolve to an OpenAI model, are proxied natively to the provider. Hosted and server tools, extended thinking, and fine-grained streaming pass through unchanged. Chat Completions requests, and requests for other providers, are translated through the OpenAI-compatible path. Self-hosted administrators can turn passthrough off with these environment variables on the API server:

ANTHROPIC_GATEWAY_PASSTHROUGH_ENABLED=false: send Anthropic-backed providers through the translation path.
OPENAI_GATEWAY_PASSTHROUGH_ENABLED=false: send true-OpenAI models through the translation path.

Both default to on.

Common errors

Error	What to check
`401` or `403`	Use a PAT with the LLM Gateway — Use scope. A full-access token, an API key, or a browser session is rejected. Check that the user still has model access.
`402`	The workspace plan does not include the gateway. Upgrade to Business or Enterprise.
`FEATURE_DISABLED`	An administrator turned the gateway off in Admin Panel > LLM Gateway.
Model not found (`404`)	Copy the model ID again from Settings > LLM Gateway. The provider ID is part of the identifier.
Rate limited (`429`)	Ask an administrator to review the user, group, or workspace spending limit in Admin Panel > Usage.
Model unavailable	Ask an administrator to configure the provider or make the model visible in Language Models.
Wrong token counts	`count_tokens` falls back to a rough local estimate when the provider cannot be reached.
