This section walks through setting up the Google Drive connector using a Service Account. More info on Service Accounts can be found here. A Google Workspace is required. If you’d rather use an individuals account + OAuth to access Google Drive, checkout the section here.

​
Authorization

1

Create Google Cloud Project

2

Enable required APIs

Enable the Google Drive API, the Admin SDK API, the Google Docs API, and the Google Sheets API

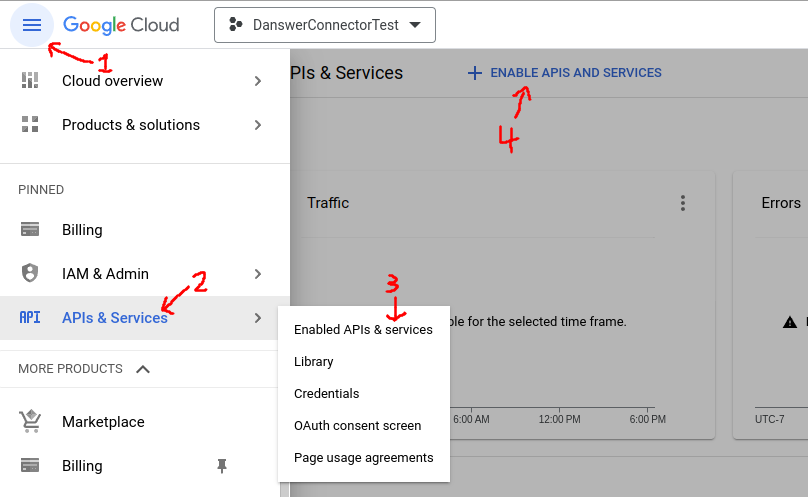

  • On the left panel, open APIs & services
  • Go to Enabled APIs and services
  • On the top click +ENABLE APIS AND SERVICES
  • Search for Google Drive API and click ENABLE
  • Alternatively visit this link, select your project and enable the Google Drive API
  • Search and enable: Admin SDK API, Google Sheets API, Google Docs API
Google Cloud Console enabling Drive, Admin SDK, Docs, and Sheets APIs
3

Create Service Account

  • Go to the Service Account management page in Google Cloud.
  • Click Create Service Account button and fill out the fields in step 1. You can ignore steps 2 and 3.
  • Go to the Keys section, and click Add Key. Download this key, you will need to upload it to Onyx later.
Note for Google Organizations created after April 2024:
  • To give the service account the proper permissions you will have to navigate to this link
  • Then select Manage, select Override parent's policy and then select Not enforced under Rules.
  • Finally, select SET POLICY
4

Grant domain-wide delegation

Give this Service Account read-only access to Google Drive
  • Copy the Unique ID of the Service Account
  • Go to the Domain-wide Delegation page in the Google Admin Console.
  • Click Add new, fill in the client ID with the Unique ID of the Service account
  • Copy this comma separated list of scopes and paste it into field OAuth scopes: https://www.googleapis.com/auth/drive.readonly,https://www.googleapis.com/auth/drive.metadata.readonly,https://www.googleapis.com/auth/admin.directory.group.readonly,https://www.googleapis.com/auth/admin.directory.user.readonly

​
Indexing

First, navigate to the Admin Panel and select the Google Drive connector. Then, create a new credential, then upload the key you downloaded in step 6. For the Primary Admin Email, use the email of a user that:
  • Has access to Drive and Docs in Google Workspace
  • Has the following admin permissions:
    • Admin console privileges -> Services -> Drive and Docs -> Settings
    • Admin API privileges -> Users -> Read
    • Admin API privileges -> Groups -> Read
    • Admin API privileges -> Organization Units -> Read

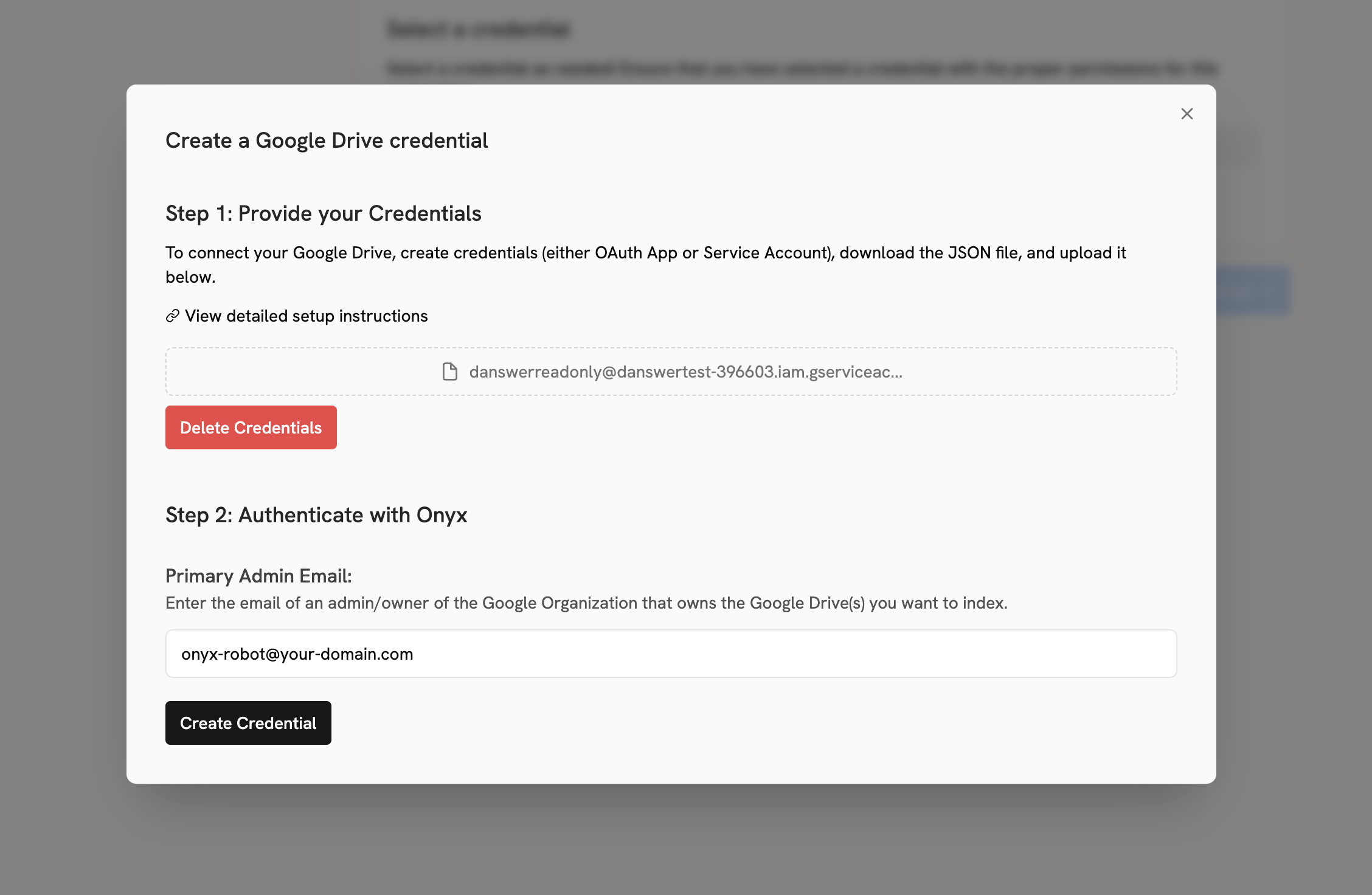

This can either be an existing admin, or a brand new account created specifically for Onyx (e.g. onyx-robot@your-domain.com). Note that this should NOT be the service account email. This can be configured by an admin in the admin panel of the Google Workspace under Account > Admin roles. Onyx Google Drive connector with Service Account credential and Primary Admin Email Click Create Credential, and then close the dialog. From there, click the Continue button and configure the connector!
